There are a ton of options when it comes to workbench joinery; from pocket holes to mortises with haunched, wedged through tenons. So which joinery should you choose? Two qualifiers come to my mind almost immediately; strength and how easy the joint is to make. Most of the time you will be looking for a balance of those two. I think I have made a joint that fits that balance quite well. It’s what I’ll call a mitered rabbet lap joint. Or I suppose you could call it a mitered dado lap joint. But the rabbet could refer to the rail and not the leg, so I’ll just stick with calling it a lapped mitered rabbet, or mitered rabbet lap joint. Okay I’m beginning to annoy myself with all that. Back to the point at hand. This joinery method is really nice and to say I’m a fan would be an understatement. It is extremely resistant to racking because of the two shoulders on the lower dados, one shoulder on the upper rabbets, and the huge amount of glue surface on face grain. The lower shoulder on both the dado and rabbet give the 2×4 rails a ton of load strength. Add to that the mitered ends on the rails that not only look good, but also keep the end grain from being exposed to the weather, and you have a heck of a workhorse joint. I used deck screws to attach the rails to the legs but this joint lends itself to a few options there as well. Other times I have used hardwood pegs for the complete fastener free experience. You could make the pegs from a contrasting wood color for some well intended juxtaposition, or use a similar wood species so the pegs end grain is only slightly darker in appearance once finished. If you are interested in building a workbench or an outdoor bench like this, I have a complete set of measured drawings with cut list available.
So what does this all mean? It means my wife wanted a work surface for her newfound hobby of outdoor gardening and I took that as my time to geek out about woodworking and make her something that will last her many years. Speaking of many years, if you have already watched the video you may have noticed something odd getting blurred out on the bottom of the bench. I’m only addressing it here as I know I’ll get questions about it. If you have followed me for a while you may know that I am very nostalgic. Most of the time my taste in furniture is dictated by form following function. Meaning if it has a certain line, curve, bracket, spacing, etc., chances are that element has a function. Furniture that gets its good looks from being designed to work well for a purpose. Pieces like that tend to last the test of time which brings me back to my nostalgic side. It makes me feel warm and fuzzy inside thinking that something I made could outlast me many times over. If that’s the case, it should have a story, it should have a history. So what was that blurred out mess? Simply put, it was an inscription to my wife as well as a provenance. Sometimes I don’t mind showing what is written on my projects and other times I think it should be kept to whom it is intended for or may see the piece after I’m gone. Food for thought I suppose. If you don’t at least sign and date your projects, I highly suggest it. I know it’s going to make me sound a few eggs short of a dozen, but that final step seems to let me release it so to speak. It’s the cherry on top or the birth of the soul of the piece. They don’t all have to be Smithsonian bound pieces of artwork either. Adding that simple inscription changes it from some glued and screwed 2×4’s to an object with history and a story behind it. At least for me it does. Either way, thanks for checking it out and enjoy!
TOOLS USED
(CLICK IMAGE OR LINK BELOW)

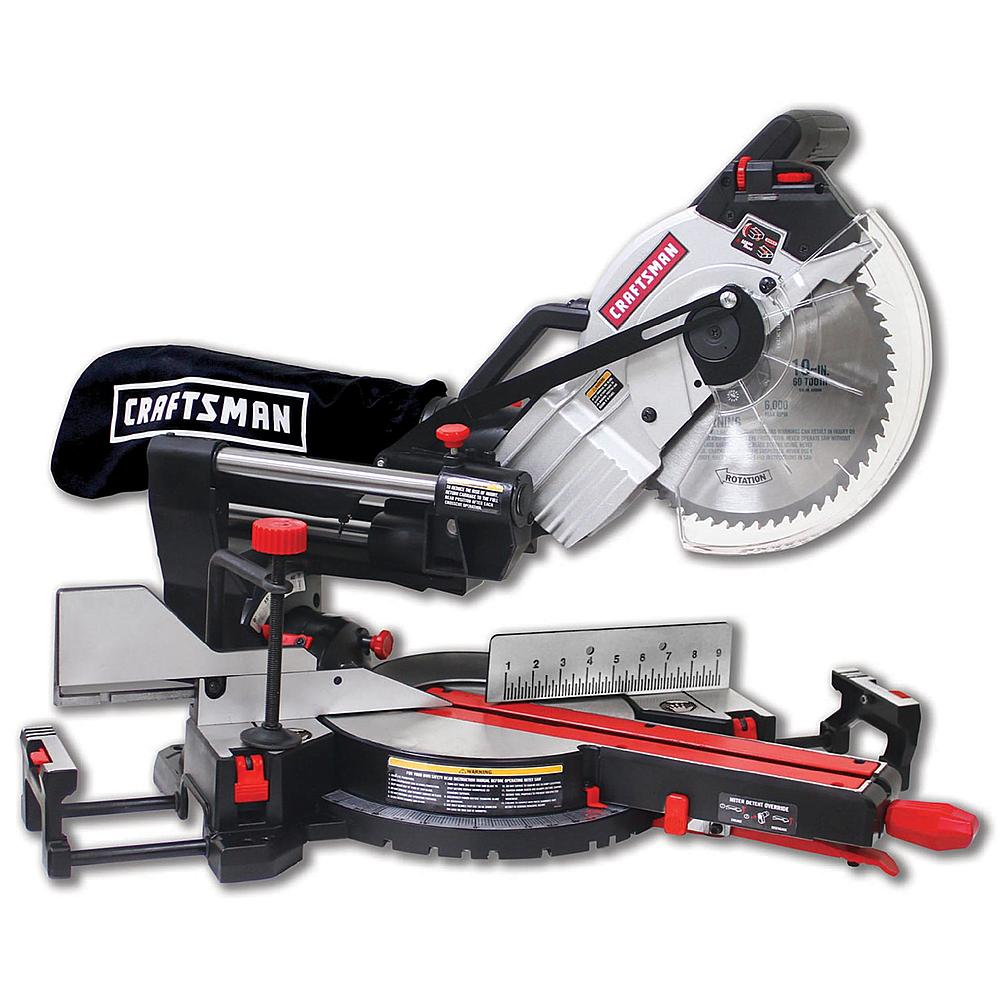

Craftsman 10″ Miter Saw

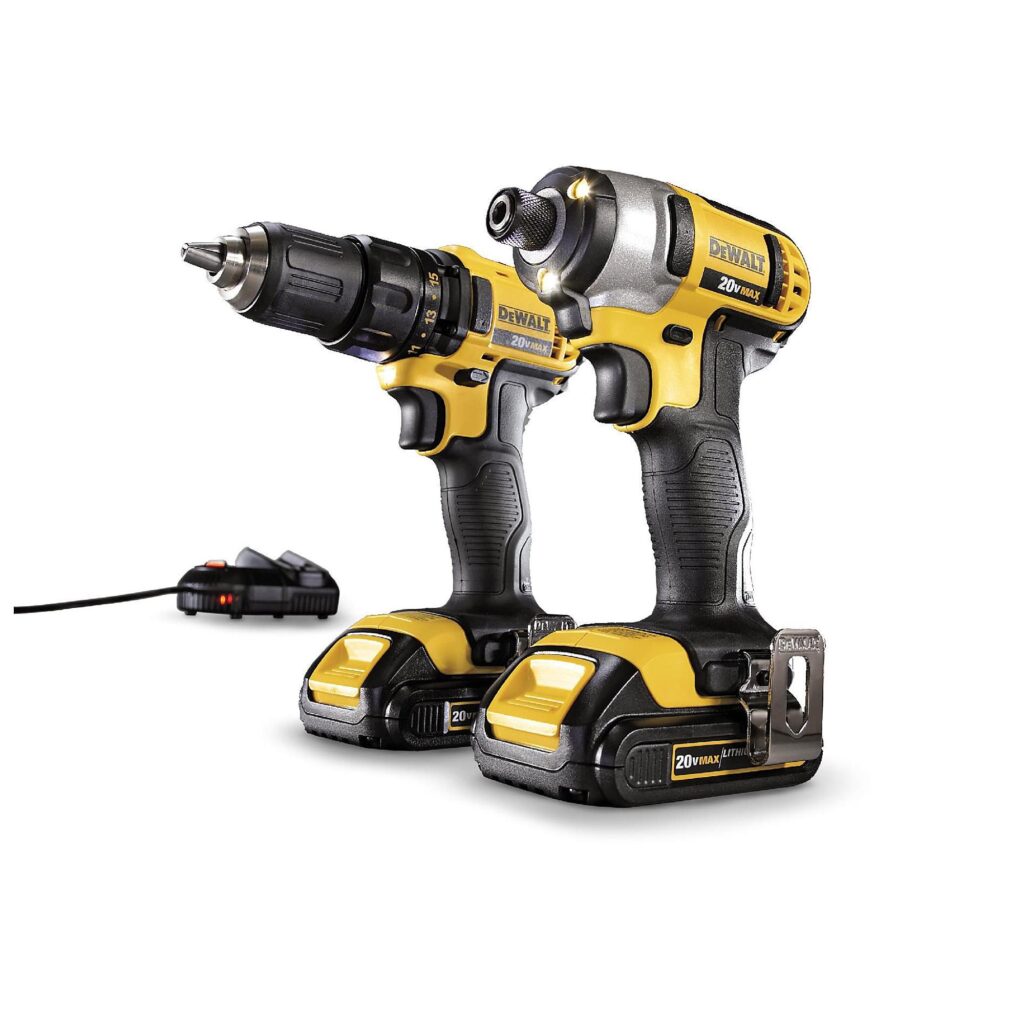

DeWalt Drill / Impact Set
Craftsman Power Sweeper Blower
SUPPLIES

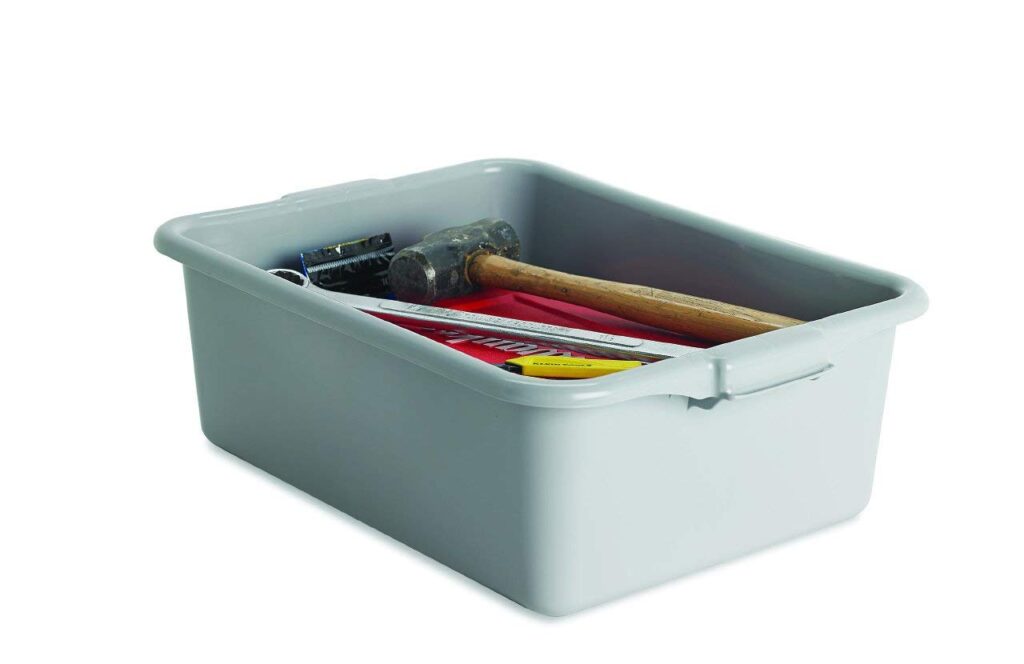

TOOL BINS
Clear Marine Varnish

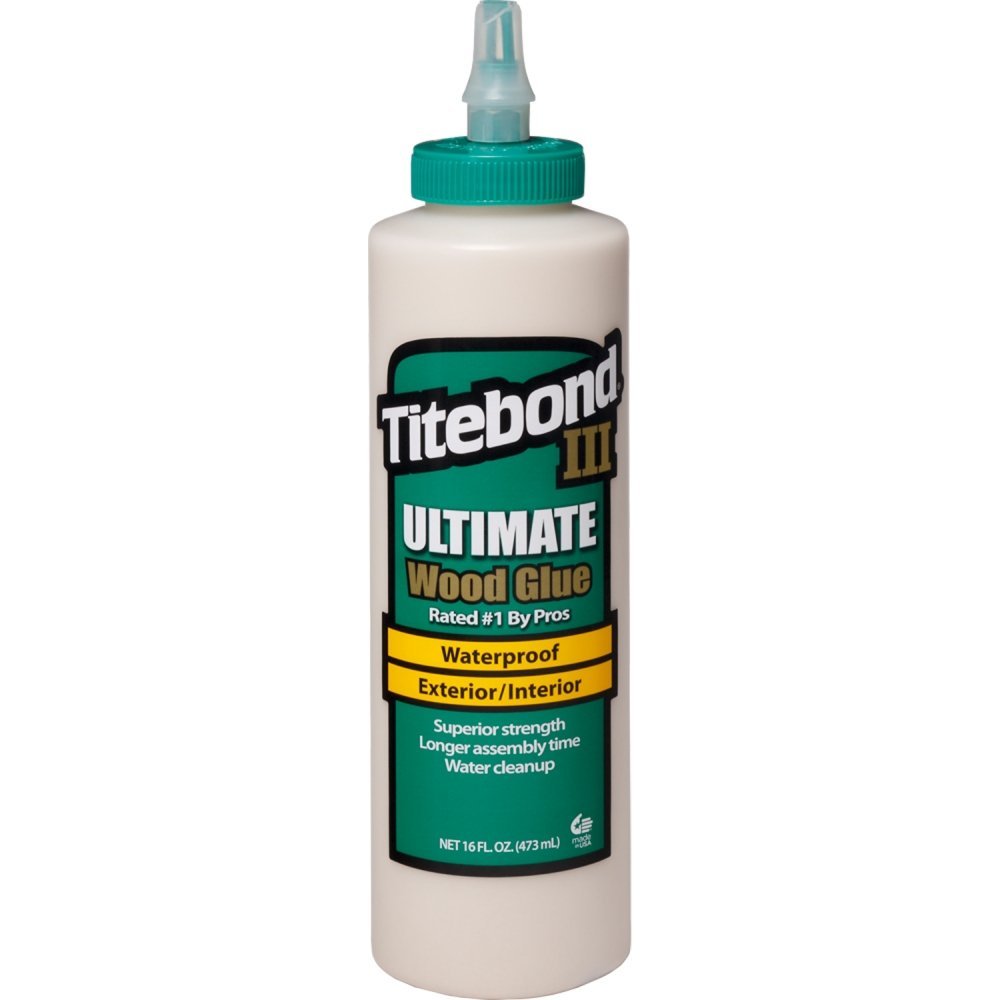

Outdoor Wood Glue
Dowel Kit With Dowel Centers
Workbench Plans
$10.99

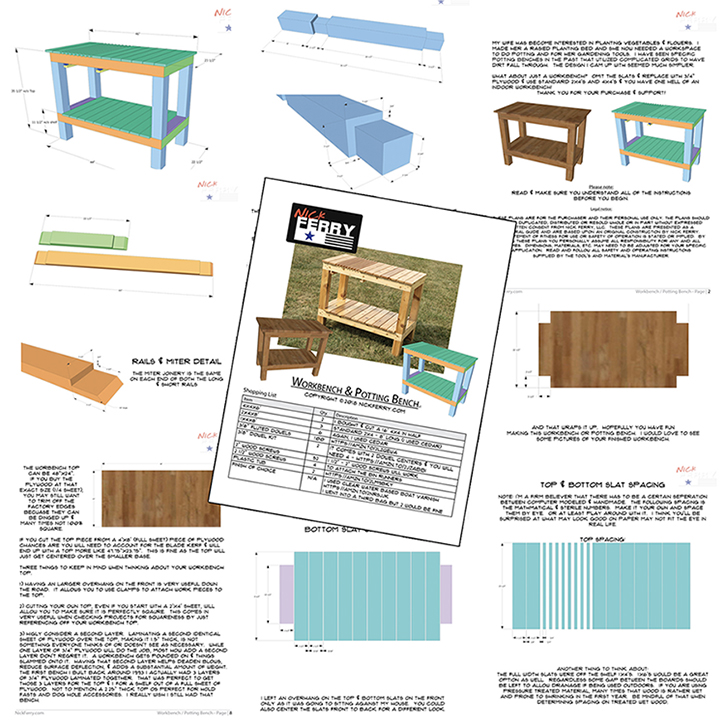

16 pages of high quality, full color PDF workbench plans as well as the potting bench I made in episode 89. All downloadable products are non-refundable. On checkout receipt you will be given a link to download the file.
